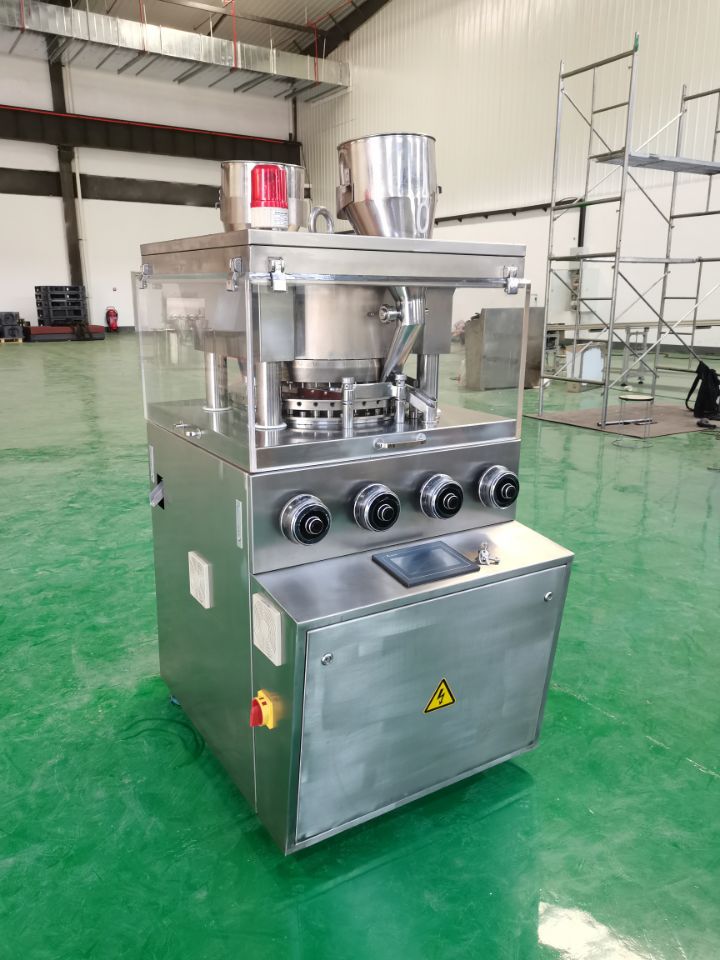

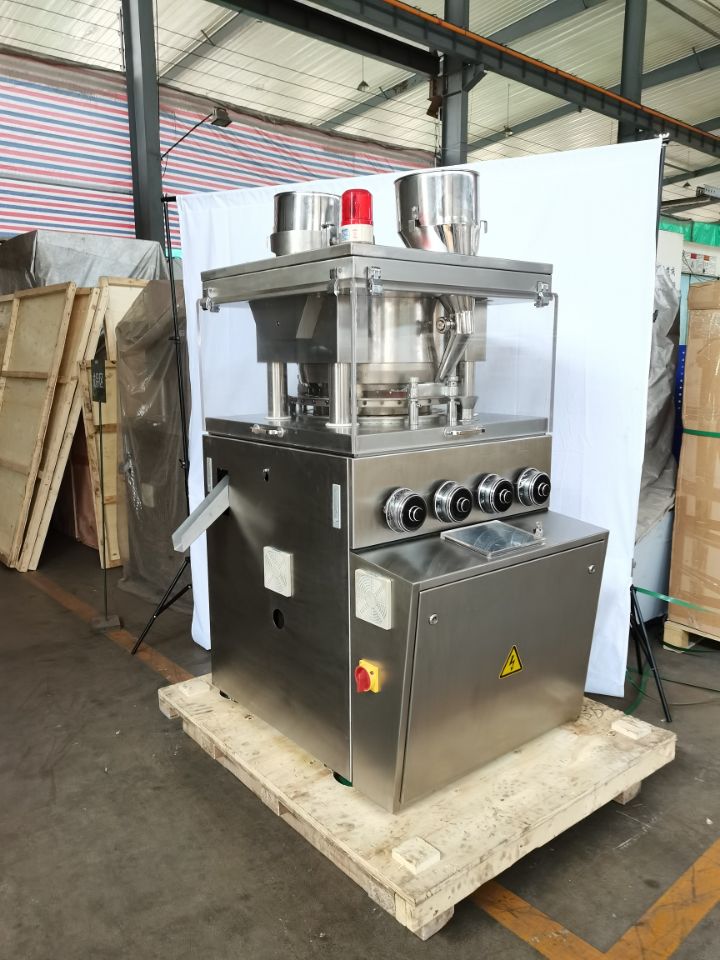

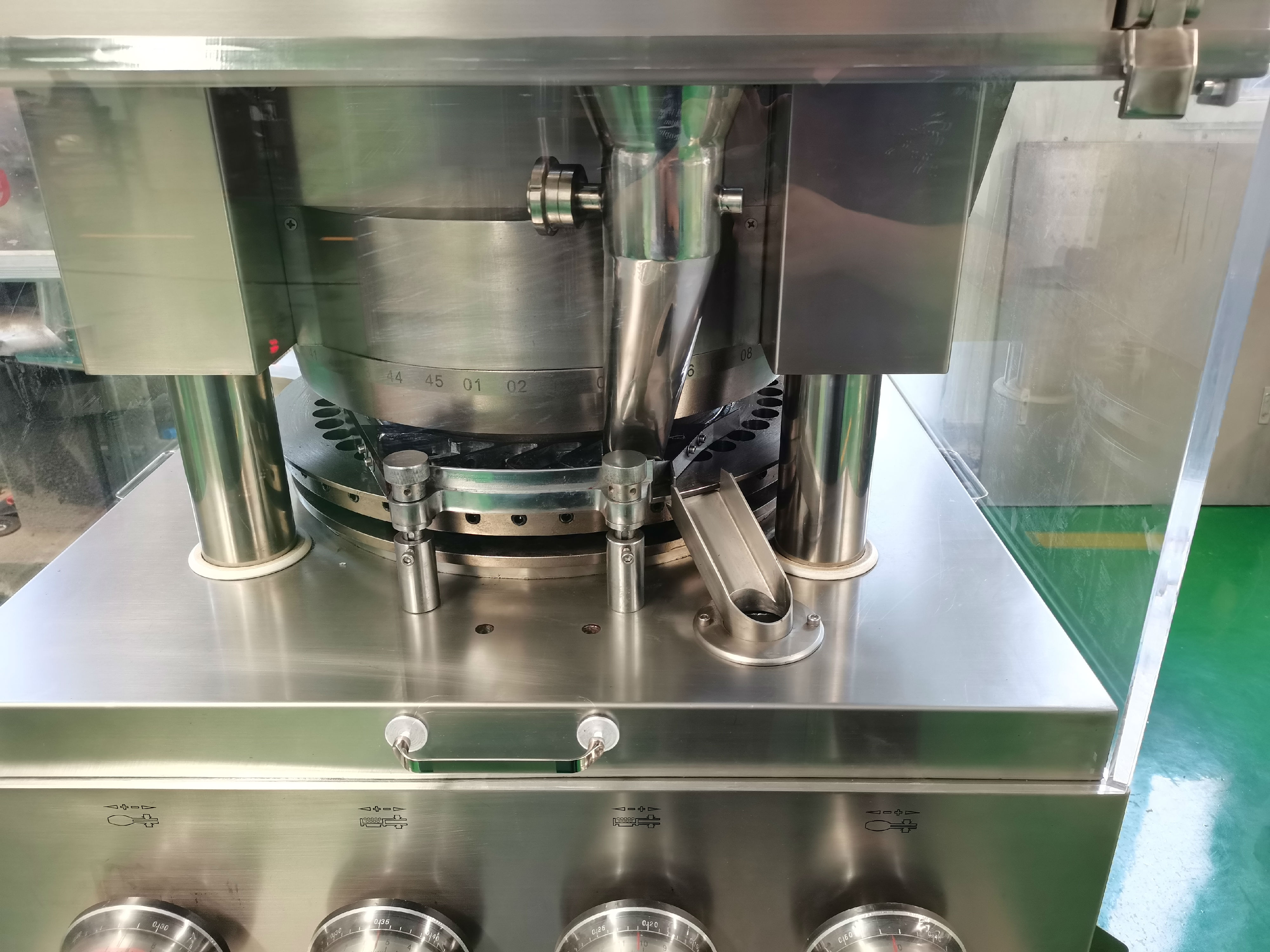

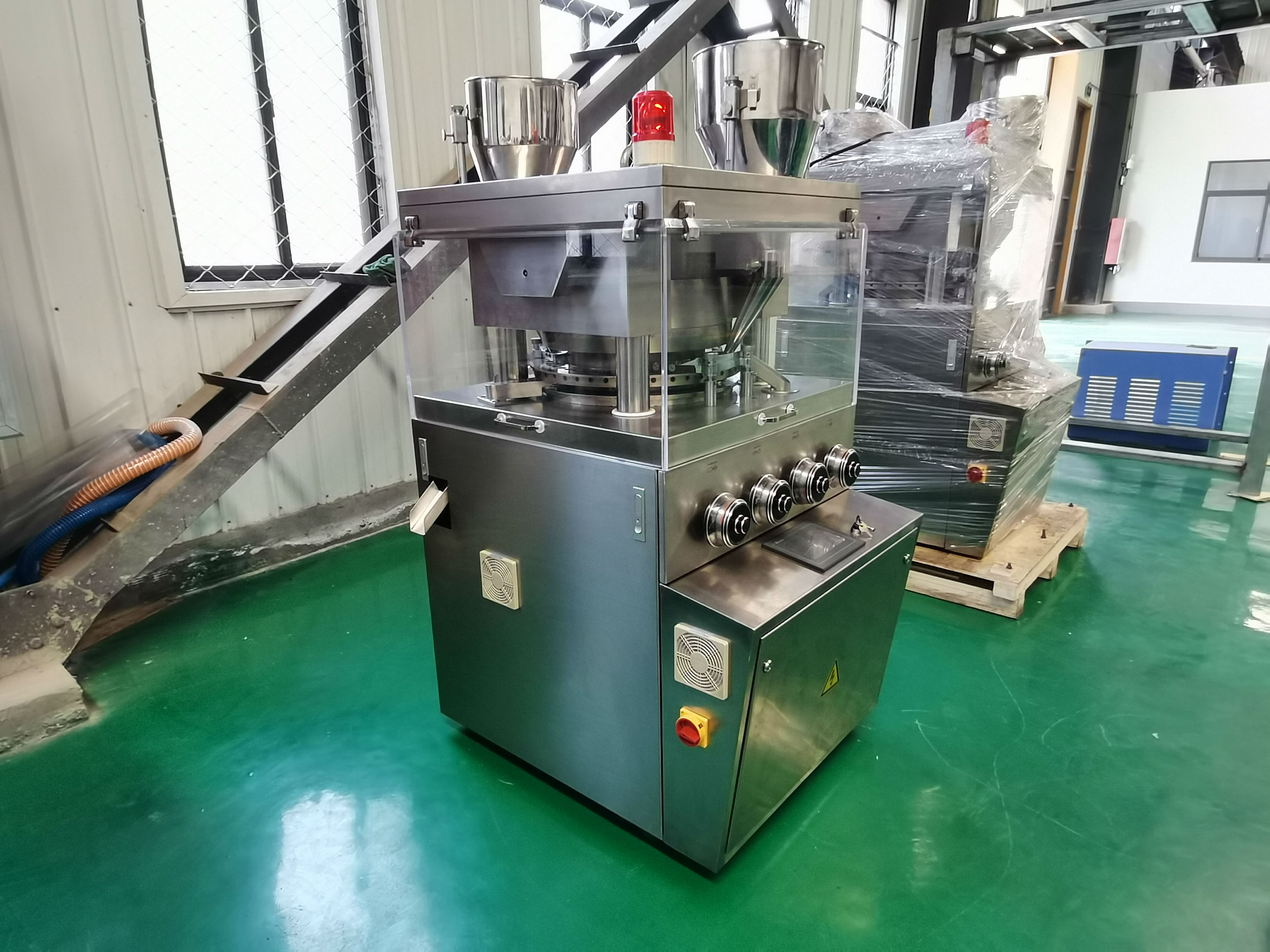

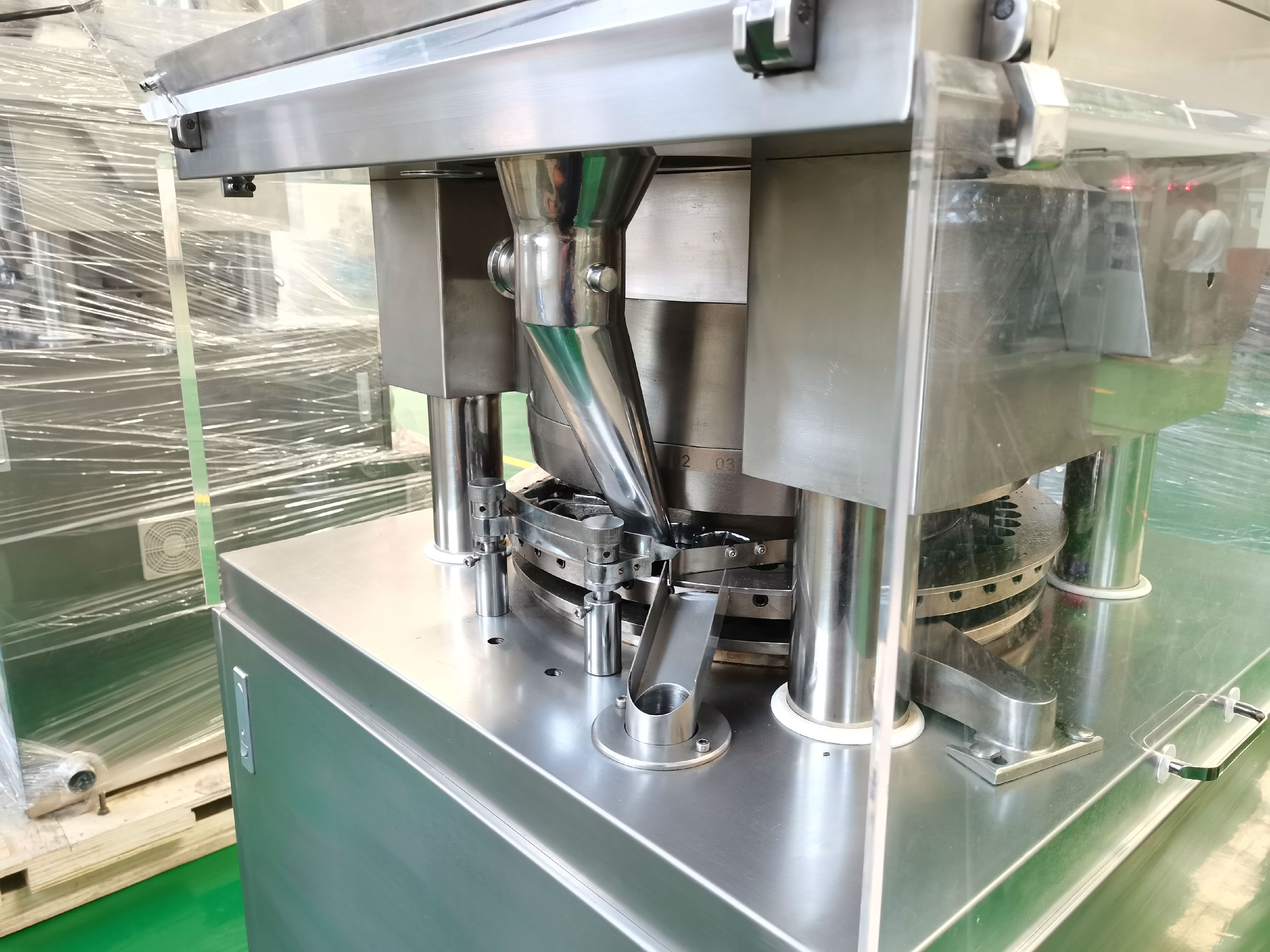

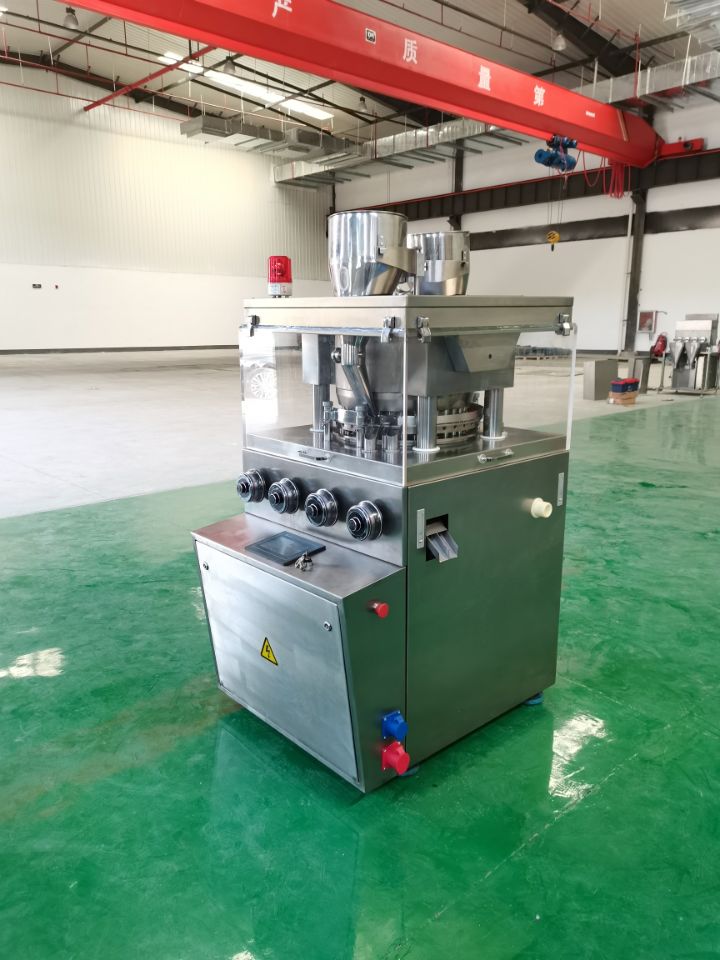

ZP45/2 ROTARY TABLET PRESS MACHINE
Main Application
This machine is in my company had ZP45 stamping machine on the basis of a newly developed dual-pressure automatic rotation, continuous piece of equipment. Widely used in pharmaceutical, chemical, food, electronics and other industries, the granular materials into a variety of round pieces, shaped film, color film and ring pieces.
Characteristics
1. meet the GMP requirements. Outer casing and the internal chamber pressure tablets are made of stainless steel table,rotary table with a special treatment, non-toxic, smooth, wear-resistant.
2. power, pressure, and has pre-press guides, smooth operation, can be pressed hard to shape materials.
3. with overload protection device. Pressure overload, warning lights flashing, and automatically shut down.
4. using frequency control, easy operation, accurate and secure.
5. centralized lubrication system so that all lubrication points are adequate lubrication, lubrication system with high reliability.
6. give full play to the humanized design concept, the machine easy to clean and maintain.
7. confined in the main transmission gear box in the bottom, separating the individual components are safe, neither to each other pollution, and the deputy drive full lubrication, reduce noise and wear.
8. special installation structure, application for utility model patents so that the next punch guide rail and the next round ofreplacement and maintenance of pressure becomes convenient.
Technical Specifications
Dies (sets) | 45 |
Max. pressure (kN) | 100 |
Max. dia. of tablet (mm) (Special shape long side) | Φ13 |
Max. depth of fill (mm) | 17 |
Max. thickness of tablet (mm) | 8 |
Turret speed (r/min) | 5~36 |
Max. production capacity (tablets/hour) | 190,000 |
Motor (kW) | 5.5 |
Net weight (kg) | 1800 |
Covering area (mm) | 1100×940 |
Height including the hopper (mm) | 17400 |
Height without the hopper(mm) | 1500 |
