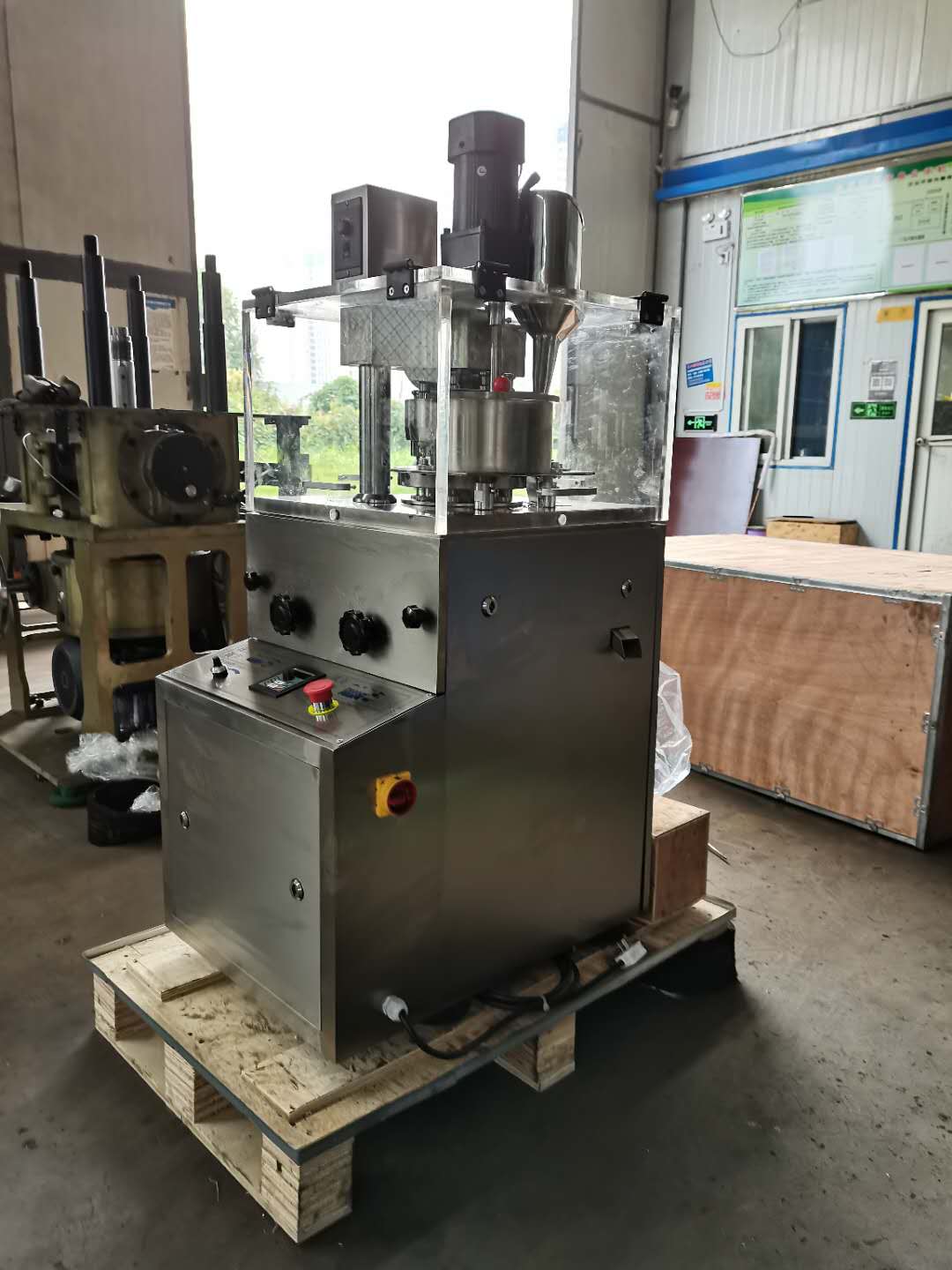

ZP-9B
Rotary Tablet Press
Main Application:
This machine is a new generation product by our factory, and this machine is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
Characteristics:
1. Design of GMP.
2. High quality all stainless steel constructions.
3. Reliable safety sealing system and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easily remove parts for quick machine’s maintenance.
Technique Parameter:
Type | ZP-9B |
Dies | 9 |
Max.pressure(kn) | 60 |
Max.Dia.of Tablet(mm) | 20 |
Max.Depth of Fill(mm) | 15 |
Max.Thickness of Tablet(mm) | 6 |
Turret Speed(r/min) | 30 |
Production Capacity(pc/h) | 9000 |
Motor(kw) | 2.2 |
Overall Size(mm) | 480*630*1100 |
Net Weight(kg) | 300 |
Main electrical equipment configuration list
No. | NAME | Model | Origin |
1 | Frequency converter | ATV series | Guangzhou |
2 | Motor | 2.2 KW | Shanghai |
3 | Stainless steel | 304 | Jiangsu |
4 | Bearing | 5 types | Shandong |
5 | Turntable | 300铸铁 | Shandong |
6 | Plexiglass | | shanghai |
Main material configuration list
Name | Material | Surface heat treatment hardness |
Rotary table | 1QT500-7Cast iron manufacturing（standard） 245#钢表面镀硬铬(选配） | 无 |
Central shaft and drive shaft material | GB/T3077-1999 40Cr Medium carbon alloy structural steel | 无 |
Main drive worm gear | GB/T1176-1987 ZQSn10-1 Tin bronze | HRC45-48 |
Worm gear | GB/T3077-1999 40Cr Medium carbon alloy structure | HRC45-48 |
Pressure wheel | GB/T1222-1984 GCr15High carbon chromium bearing steel | HRC60-62 |
Track guide | GB/T1222-1984GCr15High carbon chromium bearing | HRC58-62。 |
Feeder | Tin bronze ZQSn6-6-3, chrome plated | 无 |
Main material | GB9439-1998HT200 | 无 |
Hopper | Stainless steel (OCr18Ni9) | 无 |
