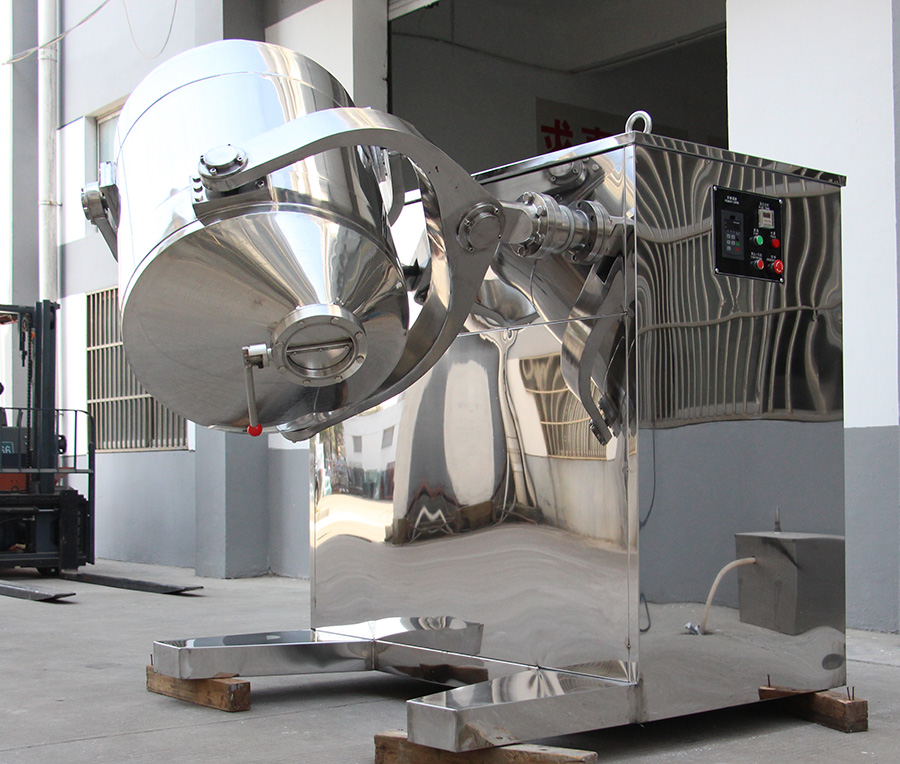

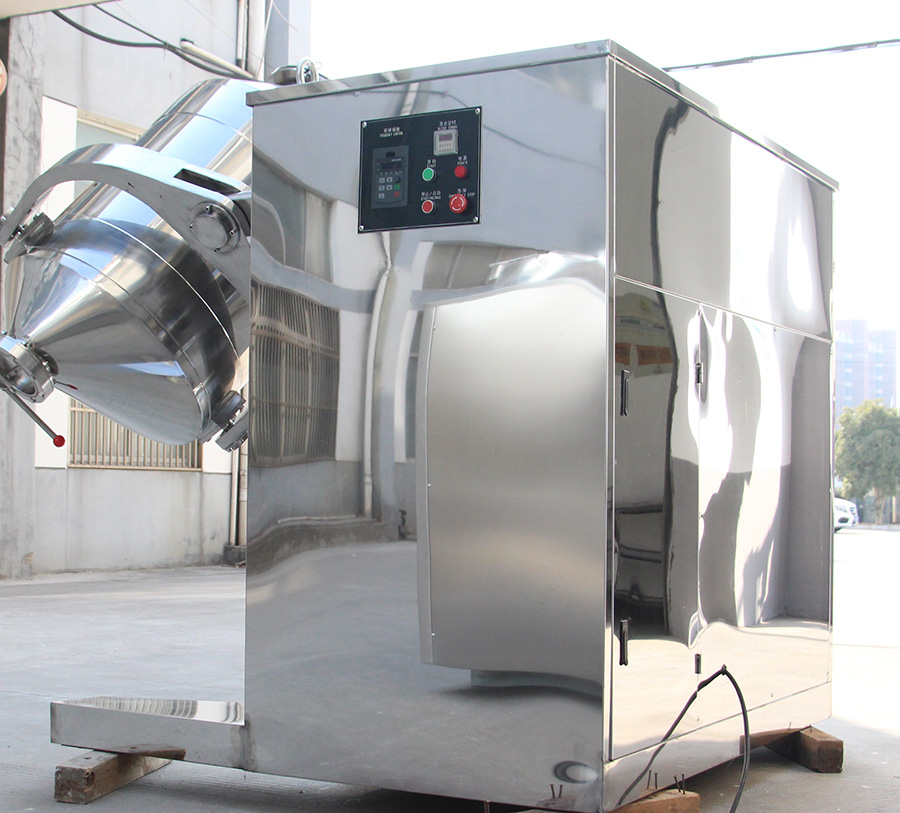

SBH series laboratory three-dimensional motion mixer is a novel material mixer widely used in pharmaceutical, chemical, food, light industry and other industries and scientific research units. This machine can mix powder or granular with good fluidity very uniformly Of materials. When the machine is working, due to the multi-directional operation of the mixing barrel, the flow and diffusion of various materials are accelerated during the mixing process. At the same time, it avoids the segregation and accumulation of the specific gravity of the materials caused by the centrifugal force of the general mixer. Good mixing effect can be achieved.
Model | tank volume（L） | Max loading volume（L） | Spindle speed （r/min） | Power （kw） | Dimensions（mm）(L×W×H) | Weight （kg） |
SBH-20 | 20 | 16 | 0-17 frequency conversion
Speed regulation | 0.55 | 740X1000X850 | 120 |
SBH-50 | 50 | 40 | 0-14 frequency conversion
Speed regulation | 1.5 | 1000X1400X1300 | 320 |
SBH-100 | 100 | 80 | 0-12 frequency conversion
Speed regulation | 2.2 | 1200X1550X1400 | 500 |
SBH-200 | 200 | 160 | 0-10 frequency conversion
Speed regulation | 4 | 1300X1600X1500 | 800 |
SBH-300 | 300 | 240 | 0-12 frequency conversion
Speed regulation | 4 | 1350X1650X1550 | 850 |
SBH-400 | 400 | 320 | 0-12 frequency conversion
Speed regulation | 4 | 1650*2000*2100 | 872 |
SBH-600 | 600 | 480 | 0-12 frequency conversion
Speed regulation | 5.5 | 1850X2500X1750 | 950 |
SBH-800 | 800 | 640 | 0-12 frequency conversion
Speed regulation | 7.5 | 2100X2650X2000 | 1100 |
SBH-1000 | 1000 | 800 | 0-12 frequency conversion Speed regulation | 7.5 | 2150X2800X2100 | 1250 |
