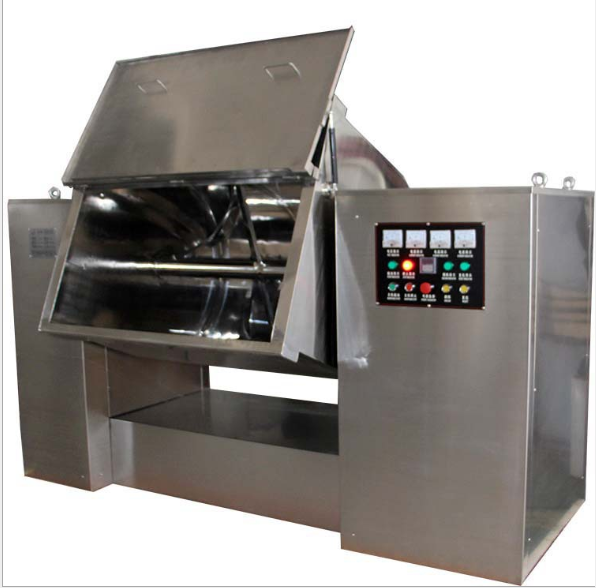

This machine is a horizontal trough-shaped single-paddle mixer, which is mainly used for the uniform mixing of dry or wet powdery materials in different proportions in the pharmaceutical industry. During the mixing process, the materials will not be dissolved, volatilized and deteriorated. This machine is also suitable for mixing different main and auxiliary materials in chemical industry, food and other industrial sectors
MOLD | volume（L） | Spindle speed(r/min) | Stirring motor(kw) | Pour motor(kw) | SIZE（mm） (L×W×H) | Weight(kg) |
CH-50 | 50 | 24 | 1.5 | 0.55 | 1155×455×800 | 186 |
CH-100 | 100 | 24 | 2.2 | 0.75 | 1350×470×910 | 242 |
CH-200 | 200 | 24 | 4 | 1.1 | 1730×670×1095 | 582 |
CH-300 | 300 | 24 | 5.5 | 1.5 | 2100×880×1200 | 950 |
CH-400 | 400 | 20 | 7.5 | 1.5 | 2140×900×1265 | 1040 |
CH-500 | 500 | 18 | 7.5 | 1.5 | 2200×900×1385 | 1200 |
CH-600 | 600 | 18 | 7.5 | 1.5 | 2300×1300×1600 | 1300 |
CH-700 | 700 | 18 | 11 | 1.5 | 2350×1000×1550 | 1400 |
CH-800 | 800 | 16 | 11 | 3 | 2600×920×1700 | 1500 |
CH-1000 | 1000 | 14 | 13 | 3 | 2700×1000×2000 | 1800 |
