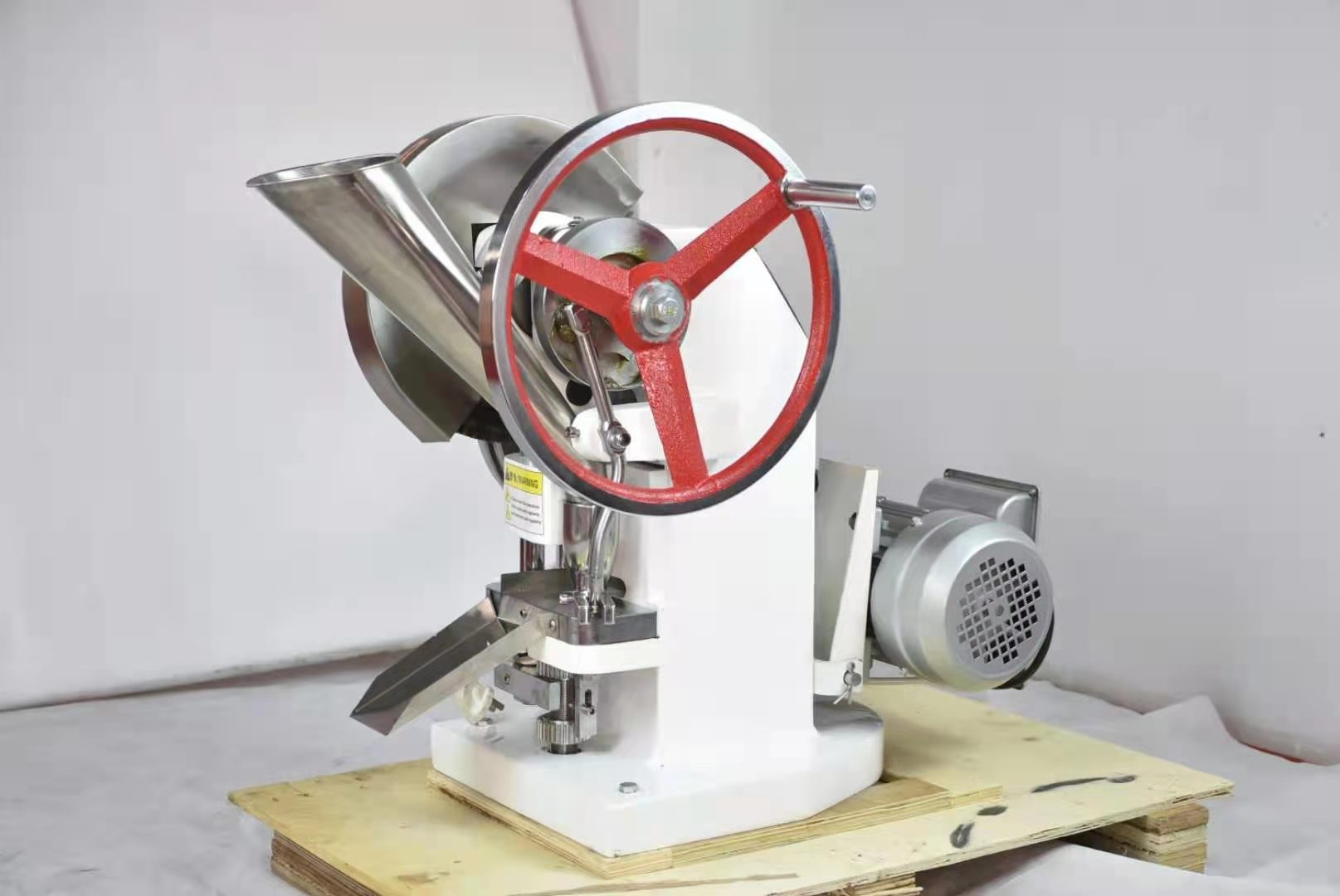

TDP-5 The machine has good performance, strong adaptability, convenient use, easy to repair, small volume, light weight, no power can also be hand piece. This machine is a pair of die installed only, the depth of the filling material, the thickness of the tablets can be adjusted, to suppress all kinds of pharmaceutical industry, medicine tablets requirements and other industries to press all kinds of similar products, favored by the majority of users welcomed the industry.
1, the machine is a small desktop machine, driven by a motor can be continuously pressing tablets
2, the machine can be a variety of small particles, coarse powder pressing round or irregular tablets, suitable for laboratory or small batch production of tablets, sugar tablets, tablets, special-shaped tablets etc..
3, this machine is not suitable for stamping large particles of solid, wet or fine powder.
This machine has the advantages of simple structure, convenient operation, high degree of automation, is suitable for various shaped tablet press.。
Number | Parameters | Numerical |
1 | Maximum compression force (KN) | 5 |
2 | Maximum tablet diameter (mm) | 15 |
3 | The maximum filling depth (mm) | 6 |
4 | Squash yield (sheet /) | 5 |
5 | With the punching sheet model no. | TDP-5 |
6 | Motor power (Watts) | phase 0.75 |
7 | Rotational speed (RPM) | 1400 |
8 | Machine weight (kg) | 65KG |
9 | Length * width * height (mm) | 800*600*700 |
